Equipped with a u-blox ZED-F9P multi-band (L1/L2) high-precision GNSS receiver and status LEDs, this unit provides reliable centimeter-level correction data for RTK rover systems. It supports standard RTK base features such as survey-in and fixed-position modes, enabling stable and repeatable reference positioning. Ideal for UAV operations, ground robotics, mapping workflows, and any system requiring a dependable RTK correction source over radio, telemetry, or NTRIP. Can be used as an RTK Fixed Base, Moving Base, or Rover.
Key Highlights
- GNSS receiver: u-blox ZED-F9P multi-band (L1/L2) GNSS delivering centimeter-level accuracy in seconds, concurrent GPS/GLONASS/Galileo/BeiDou reception, fast multi-band RTK convergence, high update rates for dynamic applications, energy-efficient operation, and support for moving-base RTK heading.

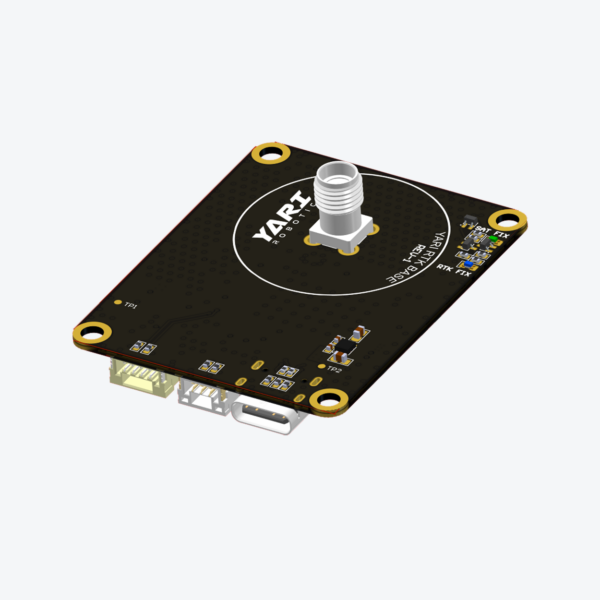

- Antenna: High-performance helical GNSS antenna (dual/tri-band) connected via a standard SMA connector. Supports direct attachment of antennas up to 27.5 mm diameter; larger or external antennas may be connected using an SMA extension cable.
- RF front end: Uses the integrated u-blox ZED-F9P RF architecture, featuring built-in low-noise amplification, filtering, and advanced multi-band signal processing for robust RTK performance.
- Open-source and flexible: Runs ArduPilot-compatible DroneCAN peripheral firmware for plug-and-play operation with Pixhawk and other DroneCAN-enabled flight controllers.
- USB-C port: Provides direct access to u-center for configuration, data logging, and firmware updates.

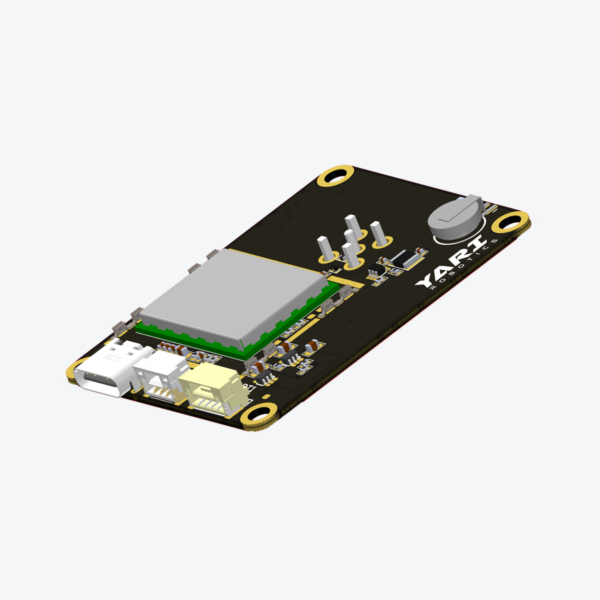

- Standard connectors: Pixhawk Standard UART (4-pin JST-GH), Pixhawk Standard Debug (6-pin JST-SH), and USB-C.
Package includes
- 1× YARI RTK BASE module
- 1× Tri Band (L1/L2/L5) Helical GNSS Antenna
- 1× 4-pin Pixhawk Standard UART cable
- 1× 4-pin to 6-pin UART cable
- 1× 3-pin JST-GH cable
Specifications
| Sensors and Processing | |
|---|---|
| GNSS receiver | u-blox ZED-F9P multi-band L1/L2 GNSS |
| Antenna | Helical GNSS antenna (L1/L2/L5) via SMA connector |

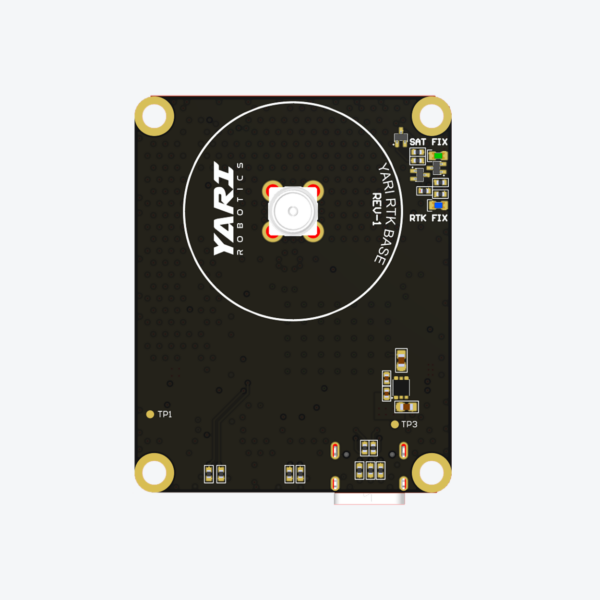

| Indicators | GNSS Sat-Fix and RTK Status |
| Antenna and RF | |
| Antenna interface | SMA connector for onboard or external GNSS antenna use |
| Supported antenna size | Direct antenna support up to 27.5 mm diameter; larger antennas can be used with an SMA extension |
| RF front end | Integrated ZED-F9P RF architecture with low-noise amplification, filtering, and multi-band signal processing |
| Interfaces | |

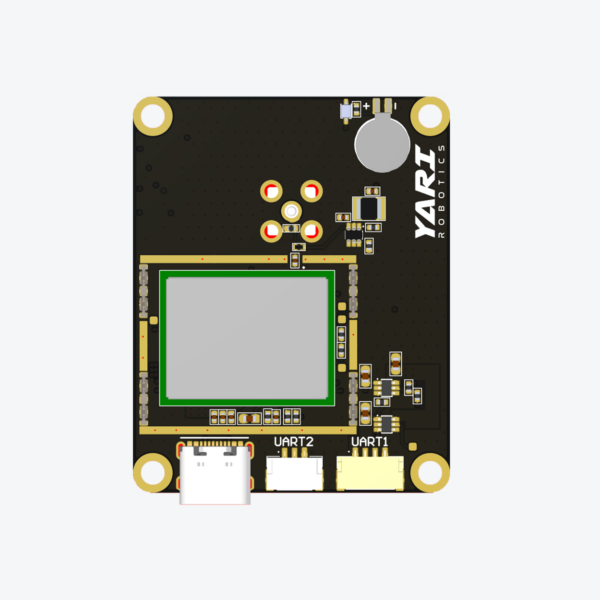

| DroneCAN / UART | 1x Pixhawk Standard UART, 4-pin JST-GH |
| UART2 (F9P) | 1x 3-pin JST-GH |
| USB | 1x USB-C for u-center configuration, data logging, and firmware updates |
| Firmware | ArduPilot-compatible DroneCAN peripheral firmware |
| Electrical and Environmental | |
| Supply voltage | 5 V |
| Current | 120 mA average, 150 mA max |
| Operating temperature | -25 to +85 C |
| Mechanical | |
| Dimensions | 50 (L) x 40 (W) x ? (H) mm |
| Weight | ? |
| Other | |
| Country of origin | India |
GNSS Performance and Bands
| Accuracy and Update Rate | |
|---|---|
| Horizontal accuracy (GNSS only) | 1.0 m CEP typical |
| Horizontal accuracy (RTK fixed) | ~1 cm + 1 ppm CEP |
| Speed accuracy | 0.05 m/s |
| Navigation update rate | Up to 25 Hz |
| Use modes | RTK Fixed Base, Moving Base, or Rover configurations |
| Acquisition and Sensitivity | |
| Acquisition | Cold start 24 s; hot start 2 s; aided start 2 s |
| Satellites | 32+ maximum |
| Sensitivity | Tracking/navigation -167 dBm; cold/hot start -148 dBm; reacquisition -160 dBm |
| Frequency Bands | |
| Supported bands | GPS L1 C/A, L2C; GLONASS L1OF, L2OF; BeiDou B1I, B2I; Galileo E1B/C, E5b; QZSS L1 C/A, L2C, L5 when available; SBAS L1 |
